JAMMER

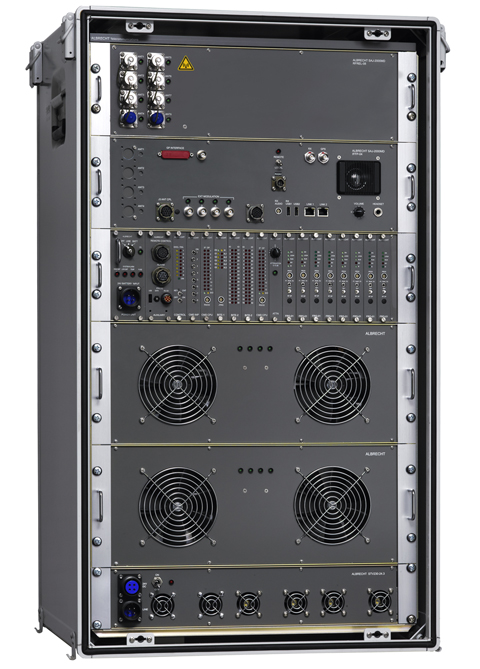

SAJ-2000MD
DIGITAL BROADBAND JAMMER
-
COMJAM application, EW/ECM
-
Portable for various platforms including airborne and shipboard installations
-
Frequency range 0.1 MHz up to Ku/K band or per separate specification
-
Up to 1 kW RF output power, adjustable
-
Ultra-fast digital synthesizers
-
Multi-threat and multi-mode operation
-
High speed search-lock receiver interface
-
Various operational modes including real-time spoofing
-
Manual and fully automatic operation
-
Programmable exclusion of unlimited communication channels or sub-bands
-
Broadband or spot jamming including programmable fast frequency hopping
-
Download of frequency lists for programmed spot jamming from a search receiver
-
Synthesizer parameters fully programmable using a PC/Notebook
-
Comfortable GUI Graphic User Interface for operator
-
Remote control via TCP/IP, encrypted VPN or protected radio link
-
Comprehensive BITE test
-
Wide range DC and AC power supply
-
According to MIL-STD-810F and DO-160F
SAJ-2000MD Application Example for German Airforce
SAJ-2000MG
CELLULAR JAMMER GSM/UMTS/WLAN
-
Transportable Cellular Jammer
-
GSM-900, GSM-1800, UMTS, WLAN
-
Quick installation, easy to operate
-
Extended blocking range
-
Frequency range 800 to 3500 MHz
-
Adjustable RF output power up to 500W
-
High jamming efficiency
-
Only one antenna for all bands required
-
Multi-band operation
-
Local and remote control unit
-
External power supply: 24VDC or 230VAC
-
According to MIL-STD-810F
COUNTER IED (C-IED)
-
State of the art generation Counter-RCIED EW (CREW) systems
-
For convoi protection, with extended frequency range, against IED threats
-
Customised versions available, including man-pack systems
SAJ-2000MG C-IED: Special Application with Extended Frequency Range, Example Convoy Protection against IEDs

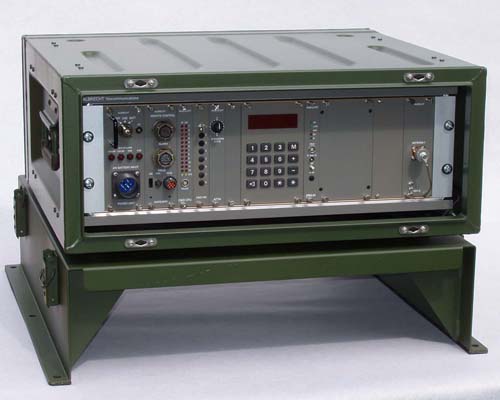

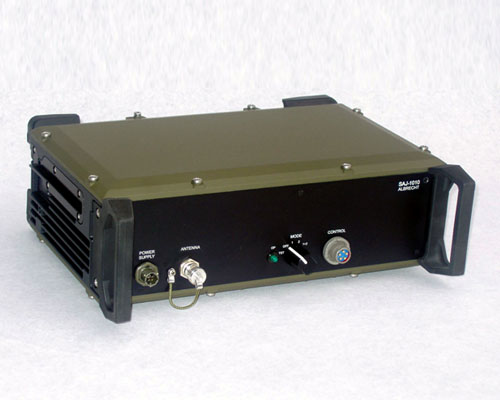

SAJ-1010
COMMUNICATION JAMMER
Quad-band
-
Protection of limited areas
-
Customised frequency bands from HF to SHF
-
Plug-in frequency modules
-
Medium output power up to 30 W
-
Simple operation
-
High performance
-
Compact size
-
Rugged, watertight construction
-
Customised jamming waveforms or frequency ranges
-
According to MIL-STD 810F and IP-67
SAJ-1030
INTELLIGENT GPS JAMMER
-
Programmable GPS spoofing
-
Operation modes: Deception/Confusion/Denial
-
Difficult to localise
-
Remotely-programmable position info offset
-
Protects limited geographical areas
-
Protects against GPS guided weapons and UAVs
-
Adjustable high power output
-
Remote control over air
-
Simple operation
-
High performance
-
Compact size
-
Rugged, watertight construction
-
According to MIL-STD 810F
SAJ-400
PORTABLE JAMMER
-
(SAJ-400.1) Tri-band GSM 900/1800/UMTS
-
(SAJ-400.2) Carlock
-
(SAJ-400.3) GPS
-
Connector for external antenna
-
2W RF output power per band
-
Selectable RF output power, H/L
-
Built-in batteries
-
Built-in battery charger
-
Connection for external power supply
-
USB powered by laptop
-
Rough aluminium housing
-
Portable set in aluminium case
